Model Railway - DCC Digital Command Control

Hornby DCC Elite Controller

Product Code: R8214

Production Details:

The Hornby “Elite” Digital Controller is more than capable of answering the needs of most railway layouts – twin control with press dial function, 17 button alpha numeric keyboard, wide function LCD screen, four amp power, as well as having the capabilities of registering 254 locomotive addresses as well as 255 solenoid powered accessory addresses (including point control), plus a USB portal for linking to a Personal Computer. The Hornby “Elite” unit is an ideal way for the enthusiast to take their train control to a new and advanced level.

Hornby DCC Select Controller

Product Code: R8213

Production Details:

The future of model railway control is here with the latest and best Hornby Digital Command Control System. The new Hornby system differs from the conventional type of 12v controllers in as much that it is the individual locomotives that are controlled internally rather than the controlling a locomotive's speed and direction by varying the current to the track. The Hornby Select Digital Controller is the perfect way to enter the digital world of model railways. The Select is capable of having control of over 60 locomotives and, providing power is available, run at any one time, 10 of them. The Select can also operate 40 accessories including point motors.

Hornby DCC e-Link + Railmaster Software

Product Code: R8312

Production Details:

E-Link contains many of the features of the Elite but control, programming etc is all via a PC / Laptop. In essence the e-Link is an interface between the computer and the layout. The combination can have allocated over 2000 point control and a staggering 9999 locomotives!! Pack will include RailMaster and 1amp transformer. Includes e-Link, RailMaster , 1amp transformer, USB cable.

In Brief

• Connects between PC & layout
• Internet activation
• Capable of allocating 9999 locomotives
• Controls in excess of 2000 points / accessories
• Read and write CVs on Programming Track
• Harnesses all the benefits of RailMaster control
• Voice control & Smart ‘enabled.
• Suitable of “0”, “H0”, “00” & “N” gauge

Gaugemaster Prodigy Express Starter Package

Product Code: DCC01

Production Details:

For a newcomer to DCC or for the operation of a smaller layout, this system is a great choice. Comprising of a Base Station, Walkaround, and Power Supply, this system is packed with features but is above all, incredibly easy to use and allows you to run your railway without fuss. With 1.6 amps, there is enough power to keep things interesting but its best feature is its sheer ease of use. Some other budget systems have the control on the console, but with this system the lightweight and comfortable Walkaround allows you extra mobility. You can add an additional handset to your system (DCC14) to unlock extra functions and point control. If you wish to extend your EXPRESS system, this is easily achievable by adding a Prodigy ADVANCE Walkaround, as is adding Wireless capability by using the DCC51 Wireless conversion set.
Not as powerful as its older brother Prodigy ADVANCE and without the ability to operate accessories in its current format, this system might not suit the more experienced modeller, but for the newcomer or someone keen to try DCC at a competitive price, this should be a system worth consideration.

Gaugemaster Prodigy Advance2

Product Code: DCC02

Production Details:

PRODIGY ADVANCE2 consists of three elements. The POWER PACK transforms the power from your mains socket ready for the Base Unit. The BASE UNIT is the brains behind the operation. It contains all the technology you need to send DCC commands to your trains and accessories. However, short of turning the power on and off, you'll find your closest companion is the Walkaround controller which plugs straight into the Base Unit. The WALKAROUND is a hand-held controller that you use to send your commands to the Base Unit, which then sends them on to the relevant decoder on your layout. You control the speed and direction of your trains from here. One of the key features of DCC operation is that each of your locomotives has a numeric address which you select as and when you want to run that locomotive. DCC allows you to run it anywhere on your railway at the same time as other trains are moving as well. You can operate points (individually or route set) and signals from the Walkaround. You can use it to programme your decoders to replicate the running characteristics of your locomotives, or even introduce a speed clock that allows you to run a 24 hour timetable within one operating session. The possibilities are almost endless with DCC and with locomotives becoming available with factory-fitted decoders as standard, we are entering an exciting new era. Of course, you can also retro-fit your older locomotives with decoders if you wish.  This controller will run between 7-8 locomotives simultaniously and control 28 loco functions.

Hornby DCC Loco Decoder V1.3 NMRA Compliant

Product Code: R8249

Production Details:

This locomotive decoder is suitable for any 'DCC Ready' locomotive, and can be easily programmed for use with Hornby's Select or Elite DCC Units. This Decoder has load compression where the motors rotational speed is controlled and not simply the voltage, separate acceleration and deceleration, 14 28 or128 speed steps, Main track programming Four on-off function (two functions are dedicated to head and tail lights), Able to operate on standard DC systems, and motor overload protection. With NMRA RP-9.1.1 / NEW652 medium plug. Replacement for R8215

Hornby Standard 6 Pin Decoder - 2 Function

Product Code: R7150

Production Details:

Hornby standard 6 pin decoder (NEM 651). 2 Function locomotive decoder. NMRA compliant. For use with Hornby B2 Peckett and new Terrier locomotives. Also suitable for some N Gauge locomotives.

Hornby 4 Pin Decoder

Product Code: R7274

Production Details:

Hornby 4 Pin Decoder. The 4-pin decoder, previously only available as a spare (X9659), is compatible with the 0-4-0 W4 Peckett from the 2020 range.

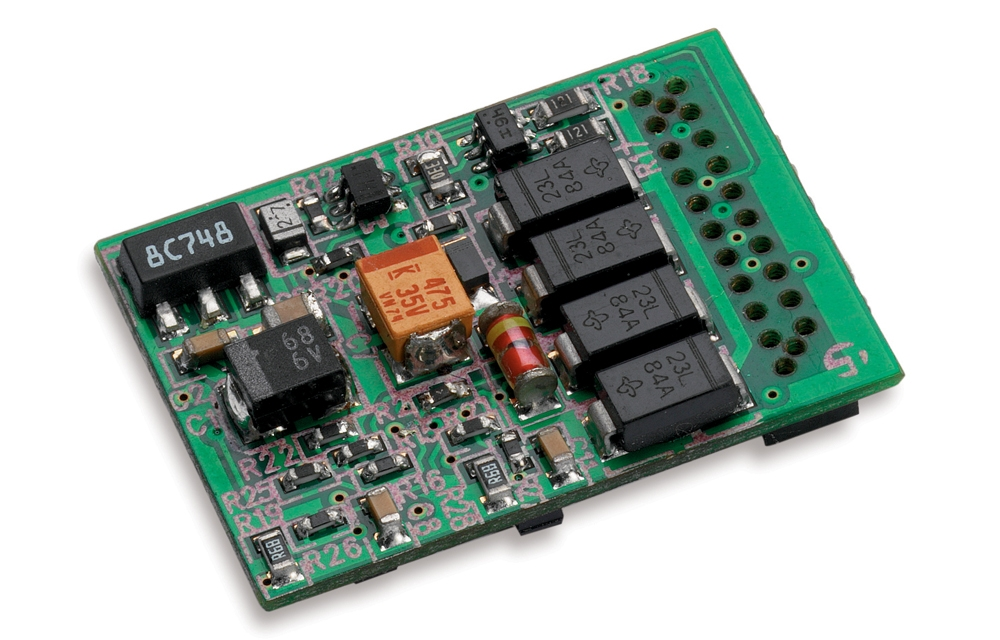

Hornby DCC Sapphire Loco Decoder NMRA Compliant

Product Code: R8245

Production Details:

Hornby DCC Sapphire Loco Decoder NMRA Compliant. ● Built to conform to all relevant NMRA Standards, ● Auto Control: Allows for locomotive to start and stop based upon internal Timer Functions, without input from the controller. ● Directional and independent Lighting with dimming and extensive special effects - Steady stat, Strobe, Flickering / random fast flash and Steady Flashing, ● Simulation of water/fuel loads with burn rate dependent on speed and operating parameters. ● Four function outputs rated at 200mA each. Total current sum of function outputs = 500mA. ● Supports Standard (basic) and advanced Consist control. ● Short and Long (extended) Addressing., ● Low speed gear for shunting operations. ● Support for programming on the mainline (operations mode programming) as per NMRA Standards. ● Provides I A continuous motor current, 1.5A stall. ● 21-pin connector (8 pin converter supplied). ● Supports 1 Amp continuous current with 1.5 Amp stall. low speed "gear" for shunting operations. Size: 23mm x 16.5mm x 6.5mm. Set amounts of "water" and "fuel" can be stored in the Sapphire providing real time fuel consumption. Burn rates can be selected.

Gaugemaster - Ruby Series (2 Function) Standard DCC Decoder 8 Pin

Product Code: DCC90

Production Details:

The DCC90 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.
Features: 2 Digit and 4 Digit Addressing, 14, 28 or 128 Speed Steps, Smooth Operation, Constant Brightness Lighting, Direct Mode Programming, Motor Isolation Protection, Advanced Consisting, Socket to Add PowerPal.

Gaugemaster - Ruby Series (2 Function) Standard DCC Decoder - 21 Pin

Product Code: DCC91

Production Details:

The DCC91 is a direct plug 21 pin decoder. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold separately), This helps keep the locomotive moving in dirty or dead track sections.

Features: 2 Digit and 4 Digit Addressing, 14, 28 or 128 Speed Steps, Smooth Operation, Constant Brightness Lighting, Direct Mode Programming, Motor Isolation Protection, Advanced Consisting, Socket to Add PowerPal.

Measurements: Length: 21mm, Width: 16mm, Thickness: 4mm
Specification: Current Rating: 0.5A, Motor Current Rating: 1.5A - 2.0A Max.

Gaugemaster - Ruby Series (6 Function) Pro DCC Decoder 8 Pin

Product Code: DCC94

Production Details:

The DCC94 is a large 8 pin decoder which is fitted with a removable 25mm harness including 2 function wires. Fitted in the decoder is a small 2 pin socket which can have the PowerPal inserted into it (sold seperately), This helps keep the locomotive moving in dirty or dead track sections.

Features: 2 Digit and 4 Digit Addressing, 14, 28 or 128 Speed Steps, Smooth Operation, Constant Brightness Lighting, Direct Mode Programming, Motor Isolation Protection, Advanced Consisting, Socket to Add PowerPal.

Gaugemaster - Ruby Series PowerPal for use with DCC90/91/94/95

Product Code: DCC99

Production Details:

The DCC99 is the PowerPal and is designed to keep your locomotives running through dirty or dead track sections. Once a bad bit of track is detected the capacitors kick in and keep the motion, lights and sounds alive until power is restored. The time period can change depending on the decoder that the PowerPal is fitted to.
Features: 6 Sealed Capacitors, 2 Pin Harness.
Suitable Decoders:
DCC90 - 2fn Standard DCC Decoder 8 Pin
DCC91 - 2fn Standard DCC Decoder 21 Pin
DCC94 - 6fn Pro DCC Decoder 8 Pin
DCC95 - 6fn Pro DCC Decoder 21 Pin

Lenz - Standard +V2" 1.0/1.8A 4 function output A,B,C,D. NEM 652 plug

Product Code: L10231-02

Product information:

New item 2016 Updated Standard decoder. Manual in German, English and French. The DIGITAL plus STANDARD locomotive decoder is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less.

The characteristics of the decoder are:  ● 1.0 Amp.or less. ● Super smooth and silent high frequency back-emf motor control. ● Adjustable precision stopping control, ● Shunting Speed on F3, ● Selectable for operation with 14/27, or 28/128 speed steps. ● Operation on conventional DC layouts is possible. ● Motor output = 1A continuous, 1.8A max,. ● Motor and function outputs protected, ● 4 function outputs rated at 150mA with adv function mapping. ● Function outputs can be set to a timer for electronic uncoupling, ● Directional or independent lighting with dimming / special effects. ● Support for Multiple traction and long addresses (up to 9,999), ● Support for programming on the mainline (POM), ● Support for all forms of programming as described in NMRA RP-9.2.3, ● RailCom, ● Size: L 25mm x W 15mm x H 3.8mm

Lenz - Silver Mini Plus Decoder with Wires

Product Code: L10310-02

Product information:

The Digital Plus Silver Mini locomotive decoder is suitable for all DC locomotives with continuous current draw of 0.5Amp or less.
The characteristics of the decoder are: ● Super smooth and silent high frequency back emf motor control, ● Supports Automatic Braking Control (ABC), ● Shunting speed, ● Suitable for operation with 14/27 or 28/128 speed steps, ● Operation on conventional DC layouts is posible or may be disabled, ● Motor output = 0.5A continuous 0.8A max, ● Motor and function outputs have short circuit protection, ● Two function outputs rated at 100mA each with advanced function mapping, ● Directional or independent lighting with dimming and special effects, ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM), ● Support for all forms of programming as described in NMRA RP-9.2.3, ● RailCom, ● SUSI solder points - new to 10310-02, ● Size: L 10.6 x W 7.5 x H 2.6mm.

Lenz - Silver Mini Plus Decoder with NEM 651 plug (6 Pin)

Product Code: L10311-02

Product information:

The Digital Plus Silver Mini locomotive decoder is suitable for all DC locomotives with continuous current draw of 0.5Amp or less.
The characteristics of the decoder are: ● Super smooth and silent high frequency back emf motor control, ● Supports Automatic Braking Control (ABC), ● Shunting speed on F3 ●  Suitable for operation with 14/27 or 28/128 speed steps, ●  Operation on conventional DC layouts is possible or may be disabled, ● Motor output = 0.5A continuous 0.8A max, ● Motor and function outputs have short circuit protection, ●  Two function outputs rated at 100mA each with advanced function mapping, ● Directional or independent lighting with dimming and special effects, ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM), ● Support for all forms of programming as described in NMRA RP-9.2.3, ●  RailCom, ●  SUSI solder points - new to 10311-02, ●  Size: L 10.6 x W 7.5 x H 2.6mm

Lenz - Silver Direct Plus Decoder

Product Code: L10330-01

Product information:

The DIGITAL plus SILVER locomotive decoder has a built in NMRA 8 pin plug and is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less that have a DCC Medium plug socket.
The characteristics of the decoder are: ● Super smooth and silent high frequency back-emf motor control. ● Supports Automatic Braking Control (ABC), ● Adjustable precision stopping control. ● Shunting speed on F3, ● Selectable for operation with 14/27, or 28/128 speed steps. ● Operation on conventional DC layouts is possible or can be disabled. ● Motor output = 1A continuous, 1.8A max, > 5 A stall. ● Motor and function outputs protected. ● Four function outputs rated at 100mA each with advanced function mapping. ● Directional or independent lighting with dimming and special effects. ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM), ● Support for all form of programming as described in NMRA RP-9.2.3, ● RailCom, ● Size: L 19mm x W 13 mm x H 3.35mm.

Lenz - Silver 21 Plus Decoder

Product Code: L10321-01

Product information:

The DIGITAL plus SILVER 21 locomotive decoder has a built in NMRA 21 pin
plug and is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less. For OO/HO models with 21MTC decoder plug.
The characteristics of the decoder are: ● Super smooth and silent high frequency back-emf motor control. ● Supports Automatic Braking Control (ABC), ● Adjustable precision stopping control. ● Shunting speed on F3, ● Selectable for operation with 14/27, or 28/128 speed steps. ● Operation on conventional DC layouts is possible or can be disabled. ● Motor output = 1A continuous, 1.8A max, > 5 A stall.
Motor and function outputs protected. ● Four function outputs rated at 100mA each with advanced function mapping. ● Directional or independent lighting with dimming and special effects. ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM). ● Support for all form of programming as described in NMRA RP-9.2.3, ● RailCom. ● Size: L 20.5 mm x W 15.5 mm x H3.92 mm

Lenz - Silver 21 PluX22

Product Code: L10322-01

Product information:

The DIGITAL plus SILVER PluX22 locomotive decoder has a built in NMRA 22 pin plug and is suitable for all DC locomotives with continuous current draw of 1.0
Amp. or less. For OO/HO models with PluX22 decoder plug
The characteristics of the decoder are:
● Super smooth and silent high frequency back-emf motor control. ● Supports Automatic Braking Control (ABC), ● Adjustable precision stopping control. ● Shunting speed on F3, ● Selectable for operation with 14/27, or 28/128 speed steps. ● Operation on conventional DC layouts is possible or can be disabled. ● Motor output = 1A continuous, 1.8A max, > 5 A stall. ● Motor and function outputs protected. ● 9 function outputs rated at 100mA each with advanced function mapping. (Maximum for all functions 500mA, ● Directional or independent lighting with dimming and special effects. ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM). ● Support for all forms of programming as described in NMRA RP-9.2.3, ● S.U.S.I. Interface through pins 1-4 in the PluX interface for specialist modules, ● RailCom, ● Size: L 22 mm x W 15mm x H 6mm

Lenz - Gold Plus Decoder

Product Code: L10433-01

Product information:

The DIGITAL plus GOLD locomotive decoder is suitable for all DC locomotives with continuous current draw of 1.0 Amp. or less.
The characteristics of the decoder are: ● Super smooth and silent high frequency back-emf motor control. ● USP with optional power module for operation on dirty track, ● Supports Automatic Braking Control (ABC), ● Adjustable precision stopping control, ● Shunting Speed on F3, ● Selectable for operation with 14/27, or 28/128 speed steps. ● Operation on conventional DC layouts is possible or can be disabled. ● Motor output = 1A continuous, 1.8A max, > 5 A stall. ● Motor and function outputs protected, ● Four function outputs rated at 200mA each with advanced function mapping, ● Directional or independent lighting with dimming and special effects. ● Support for Multiple traction and long addresses (Loco addresses up to 9,999), ● Support for programming on the mainline (Programming on Main POM), ● Support for all form of programming as described in NMRA RP-9.2.3, ● RailCom, ● Size: L 0.91" x W 0.66"x H 0.2" L 23.0 mm x W 16.5 mm x H 6.5 mm

Gaugemaster - 8 to 21 Pin Adaptor

Product Code: DCC72

Production Details:

8 to 21 Pin Adaptor. Allows the use of an 8 pin DCC loco decoder in a loco with a 21 pin DCC socket.

Gaugemaster - Accessory Decoder (4 Outputs)

Product Code: DCC30

Production Details:

DCC Accessory Decoder for four accessories. Can be powered from the tracks DCC signal or via a 16v AC power supply such as the Gaugemaster WM1 Transformer. See Instructions for details. NMRA compatible. Not recommended for use with the Hornby Select Unit.

SEEP Digital Solenoid Point Motor

Product Code: GMC-PM10D

Production Details:

The PM10D point motor has been created to make installation and wiring as easy as possible for all modellers in all scales.
Based on the very efficient "Universal fit" PM10, the PM10D also incorporates a DCC-Digital decoder that makes wiring very simple. The decoder can be detached from the point motor so it can be attached directly to the point. Then with the screws provided just mount the decoder to the underside of the board.
However, DC modellers have not been forgotten - At Gaugemaster we understand that while ALL modellers want easy wiring, many who still prefer to drive their trains with DC need simple wiring too, so the PM10D has also been designed to be 100% DC compatible!

Hornby - Accessory Decoder with 4 Outputs

Product Code: R8247

Production Details:

This Accessory decoder is suitable for fitting to any point, and can be easily programmed for operation by Hornby's Select or Elite DCC Units. The four outputs are factory set for the operation of solenoid (point) motors, however, by adjusting the CV settings of each output a graduation of varying "bursts" of current up to a constant current (turntable motor operation, lighting, etc.) can be obtained for each individual output.

This pack includes a Point Decoder, decoder to track link wire and a screw driver and screws. Replacement for R8216.

DCC Concepts - Universal Solenoid Accessory Decoder (2 Output)

Product Code: ADS-2SX

Production Details:

Accessory Decoder CDU Solenoid Drive SX 2-Way with Power-Off Memory and Protective Case. AD-S2sx is an easy-to-use 2-way accessory decoder for solenoids with power-off memory. AD-2sx has a CDU built-in to each output and is the most reliable and most powerful solenoid decoder available, yet it stores all its power on-board so does not drain your DCC track power! Packed with features including a CDU discharge button, Panel LED or Signal Control, Push-Button Option and Frog Power Switching. (Replaces ADS-2FX)

DCC Concepts - Universal Solenoid Accessory Decoder (8 Output)

Product Code: ADS-8FX

Production Details:

ADS-8fx is a high performance high feature level 8-output DCC accessory decoder with built-in CDU on every output designed to power Seep, Hornby, Peco and similar high current point motors properly and make sure they change every single time!
ADS-8fx can be powered with either DC (for DC only layouts) or with DCC to give all the advantages of digital or computer control. ADS-8fx will tolerate a very wide DC input voltage or a wide track bus voltage range and guarantees to give superb results every time.

Lenz - Accessory Decoder for 6 Points / Turnouts

Product Code: L11150

Product information:

The DIGITAL plus LS150 turnout decoder provides cost effective turnout control for up to 6 independent turnouts. Suitable for twin-coil snap action switch machines. Suitable for motorized switch machines. High current provision to support Peco and Atlas switch machines. The 6 turnout addresses can be sequential or up to 6 user selected addresses. Control using separate push-buttons possible. Configuring the LS150 does not require a separate programming track and the parameters can be changed at any time in the future even after installation.

View Technical specification

Lenz - TR 100 Transformer 15v

Product Code: LTR100

Product information:

The Lenz TR 100 Transformer 15v.

Hornby Digital 4 Amp Multi-Purpose Transformer

Product Code: P9300

Production Details:

4 amp transformer which is capable of providing enough power to run approximately eight locomotives at any one time. Can be used as a replacement for the 1 amp transformer supplied with the Select unit to allow the control of more locomotives simultaneously. Replacement for C7024

Hornby DCC Electronic Point Clips

Product Code: R8232

Production Details:

DCC control works best when the whole layout is "live". Hornby points are self isolating so therefore need 2 DCC point clips to be fitted to the point to allow the power to flow down both routes. 20 clips per pack

Hornby RJ-12 Select/Elite to Walkabout Select Lead

Product Code: R8266

Production Details:

RJ-12 cables are used to connect DCC controllers together using the express net socket. This cable will allow you to connect a Hornby select/elite to another select for use as an extra controller.

Hornby RJ-12 Lead (To connect a select to an elite) 3 Metres

Product Code: R8236

Production Details:

RJ-12 cables are used to connect DCC controllers together using the express net socket. This cable will allow you to connect a Hornby select as an extra controller to a Hornby elite.

Hornby RJ-12 Lead Connecting Socket

Product Code: R8237

Production Details:

Required when using several R8236 connecting leads with the Select or Elite Units.

Hornby DCC Reverse Loop Module

Product Code: R8238

Production Details:

To be used when track configurations such as a reverse loop or triangle permanent way sections are used in a circuit. The Hornby Reverse Loop module controls the polarity of the track so that locomotives running around these sections can do so uninterrupted without the use of switches and complicated wiring. Can only be used with the Hornby Digital units.

Hornby Power and Signal Booster

Product Code: R8239

Production Details:

Can be used with the Hornby C7024 4 amp transformer or suitable transformer up to a maximum of 5 amps.

The Hornby Booster provides more amps, if required to power the locomotives as well as boosting the command signals to the locomotive decoders.

Hornby Power Link Wire Pack

Product Code: R8201

Production Details:

Pack contains two power clips and wires for adding additional power feeds to a circuit.

Hornby Digital Power Track

Product Code: R8241

Production Details:

A section of R600 track with built in power clip. For use on all Hornby Digital track layouts.

Gaugemaster Two Aspect Signal - Plastic

Product Code: HBYS

Production Details:

Hornby Type Colour Light Signal for 12v DC. This two aspect light signal can be used with 16v AC~ with a GM74 diode. The signal comes with a ladder and dpdt on-on slide switch.

Hornby Colour Light Signal - Metal

Product Code: R406

Production Details:

Switches from red to green and back again. Powered from the accessory power output on your controller (or other 16v AC supply). Operated by 'on-on' lever switch R046 (not included).

Hornby Two Way Lever Switch

Product Code: R046


Production Details:

Designed to divert power from one circuit to another - eg. with R406 coloured light signals to switch from red to green and back again. It may also be used to switch power from one section of track to another and is the switch you use to operate turntable R070.

Hornby Passing Contact Switch

(for point motors)

Product Code: R044

Production Details:

Supplies the brief pulse of current that a point motor requires. Supplied with connecting wires.

Hornby on-off Level Switch

Product Code: R047


Production Details:

Conventional on/off switch for R618 double-isolating track. Supplied with connecting wires.

Hornby Junction Home

Product Code: R169

Production Details:

This junction home signal is for manual operation only. Height 172mm. This signal represents the type of signal used on the approach to points. The taller signal controls the main line.

Hornby Junction Distant

Product Code: R170

Production Details:

This junction distant signal is for manual operation only. Height 172mm. This signal represents the type of signal used on the approach to points. The taller signals controls the main line. The yellow arms signify "distant" or "caution", and are seen prior to signals with red arms.

Hornby Home Signal

Product Code: R171

Production Details:

This signal is for manual operation only. Height: 121mm

Hornby Distant Signal

Product Code: R172


Production Details:

This signal is for manual operation only Height: 121mm
